Product No.
|
LC8250ZLC-1
|
LC8250ZLC-2
|
LC8250ZLC
|
LC8250ZLCz-1
|
LC8250ZLCz-2
|
LC8250ZLCz
|
Type
|
in-line direct injection、exhaust turbocharged、4 stroke、Air inter cooling
|
Main bearing type
|
underslung type
|
Cylinder
|
8
|
Bore/Stroke (mm)
|
250/320
|
Capacity
|
125.67
|
Continuous Speed (r/min)
|
825
|
750
|
Continuous output (kW)
|
1618
|
1765
|
1470
|
Resolution per hour power per hour
|
852/1780
|
852/1941
|
774/1618
|
Minimumsteady speedunder load(r/min)
|
330
|
330
|
300
|
Piston Average Speed (m/s)
|
8.8
|
8
|
Rotation direction of crankshaft
|
The right machine resolves right .To look from the flywheel side to the free side:clockwise.
|
The left machine resolves right .To look from the flywheel side to the free side:counter-clockwise.
|
Fire sequence
|
right machine：1-3-5-7-8-6-4-2 left machine：1-2-4-6-8-7-5-3
|
Starting method
|
Air motor starting
|
Starting air pressure（MPa）
|
air cylinder pressure：3.0 after pressure-relief：1.0
|

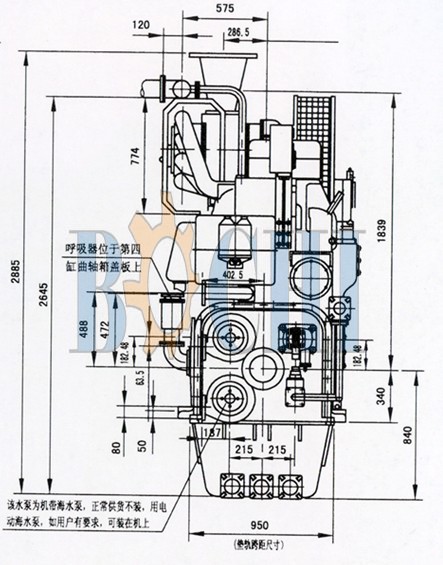

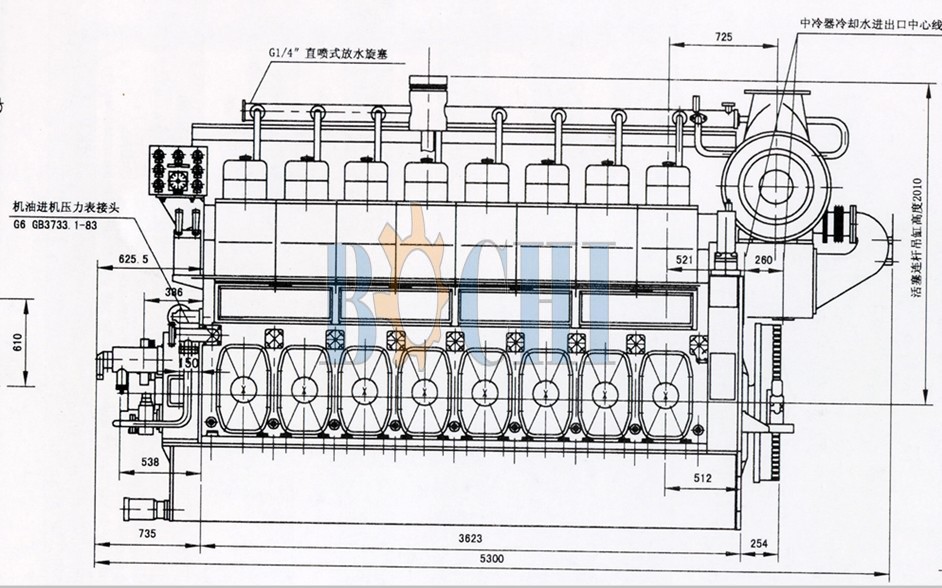

Dimension （mm）
|
5300×1500×2885
|
Height of lifting position Crankshaft （mm）
|
2010
|
Net Weight （kg）
|
17900
|
Mean noise level（dB(A)）
|
（sound power level）<103
|
