High Speed Powerful 6 Cylinder 6B Series Marine Diesel Engine

Date:2020-05-27  Click:236   Share to:

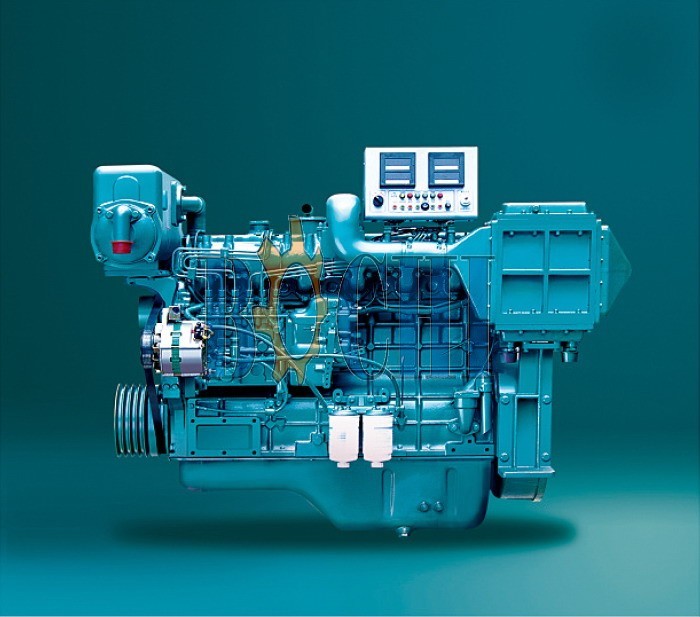

    • High Speed Powerful 6 Cylinder 6B Series Marine Diesel Engine

    6B Series
    Model
    Power/Speed
    Intake way
    Displacement
    Net weight
    Length*Width*Height
    Flywheel
    Encloser
    Function
    Continuous
    One-hour
    (L)
    (Kkg)
    (mm)
    BMMPPDEY6108CA
    63/1500
    69.3/1500
    Normally Aspirated
    6.871
    700
    1252*780*1075
    SAE 11.5
    SAE 2
    main engine/
    auxiliary engine
    BMMPPDEY6108CA1
    82/2000
    90.2/2065
    Normally Aspirated
    6.871
    700
    1252*780*1075
    main engine
    BMMPPDEY6108ZC
    80/1500
    88/1500
    turbocharged
    6.871
    700
    1293*780*1198
    main engine/
    auxiliary engine
    BMMPPDEY6108ZCA
    103/2300
    113.3/2374
    turbocharged
    6.871
    700
    1293*780*1198
    main engine
    BMMPPDEY6108ZLCA
    90/1500
    99/1548
    turbocharged
    intercooled
    6.871
    750
    1420*810*1020
    main engine/
    auxiliary engine
    BMMPPDEY6B150C
    110/1800
    121/1858
    turbocharged
    intercooled
    6.871
    760
    1415*877*1025
    main engine
    BMMPPDEY6B165C
    120/2300
    132/2374
    turbocharged
    intercooled
    6.871
    760
    1415*877*1025
    main engine
    Y6B specification
    Model
    BMMPPDEY6108ZLCA
    BMMPPDEY6B150C
    BMMPPDEY6B165C
    Type
    Vertical,in-line,water-cooled,4 stroke
    Intake way
    exhaust gas turbocharge,intercooled
    No. of Cylinder - bore*stroke
    6-108*125
    Dispalcement (L)
    6.871
    Compression ratio
    17.5:1
    Continuous power/speed (kW/r/min)
    90/1500
    110/1800
    120/2300
    One-hour power/speed (kW/r/min)
    99/1548
    121/1858
    132/2374
    Min.specific fuel consumption (g/kW·h)
    ≤200
    Specific Oil Consumption (g/kW·h)
    ≤0.8
    Crank shaft rotation direction
    counter-clockwise(seen from the power output end)
    Net mass (kg)
    750
    Overall demension(L*W*H) (mm)
    1415*877*1025
    1408*877*1062
    1415*877*1025
    Ruduction gearbox to be matched
    HC65,135,120C…
    135,120C…
    HC65,120C…
